Description
Con la funcionalidad de varios dispositivos y, sin embargo, la sencillez de uno, el escáner de red Fujitsu N7100 dispone de cualidades para adaptarse a empresas de cualquier tamaño y así mejorar los procesos empresariales.
Idóneo para pequeñas y medianas empresas
- Diseño que ocupa poco espacio
- Funcionalidad multifunción para reducir los costes de hardware
- Cuentas de usuario locales
- Funcionamiento silencioso
- Equipado con funciones de escaneado inteligente
- Extraordinaria relación precio/rendimiento
Funcionalidad de oficina general
- Gran velocidad de escaneado de 25 páginas por minuto y de doble cara de 50 imágenes por minuto en color, escala de grises o en blanco y negro de 300 ppp real
- Alimentador de documentos de 50 páginas
- Gran pantalla táctil de 8,4″ de alta resolución (1024 x 768 píxeles)

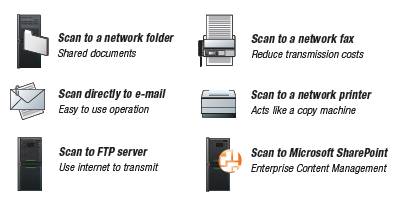

- Escanee a correos electrónicos, a carpetas/FTP, a fax o impresoras de red o a las funciones de Microsoft SharePoint Server Enterprise
*Versión de compatibilidad limitada para SharePoint* - Software de Scan Admin Central Server
- Menú de trabajo basado en los inicios de sesión individuales de cada usuario para controlar la configuración y los destinos de los escaneos
- Alta seguridad para proporcionar ayuda con el cumplimiento y las normativas
- Kit de desarrollo de software y aplicaciones de terceros opcionales para la integración con los sistemas empresariales
¿Es el Scanner Fujitsu N7100 la mejor decision para su empresa? ¿Como escoger un scanner?
| Description | Fujitsu N7100 | |
|---|---|---|
| Scanner type | ADF (Automatic Document Feeder), Duplex scanning | |
| Scanning modes | Color, grayscale, monochrome, automatic (color / grayscale / monochrome detection) | |
| Image sensor type | Color CIS x 2 (front x 1, back x 1) | |
| Light source | 3 Color LED (Red / Green / Blue) | |
| Multi-feed detection | Supported (Standard) ultrasonic multi-feed defection sensor | |
| Document size (1) |
Normal mode without Carrier Sheet |
A4, A5, A6, B5, B6, Business card, Post card, Letter, Legal and Custom sizes (Max: 216 x 355.6 mm (8.5 x 14.17 in.), Min: 50.8 x 50.8 mm (2 x2 in.)) Automatically recognizes document size |
| Normal mode with Carrier Sheet |
Use of a Carrier Sheet permits the scanning of A3, B4, 11 x 17 in., and photographs as well as the documents sizes that are listed above | |
| Long paper scanning(Maximum) |
3,048 mm (120 in.) (2) | |
| Paper weight (Thickness) |
40 to 209 g/㎡ , or 11 to 56 lb (paper thickness 0.049 to 0.257 mm)
|
|
| Scanning speed (A4 Portrait)(3) |
Color | Simplex: 25 ppm (200, 300 dpi) Duplex: 50 ipm (200, 300 dpi) |
| Grayscale | ||
| Monochrome | ||
| Paper chute capacity | 50 sheets (Letter/A4, 80 g/㎡ or 20 lb) (Active loadable ADF) | |
| Expected Daily Volume | 4,000 pages | |
| Optical resolution | 600 dpi | |
| Output resolution(4) |
Color (24-bit) | 150 / 200 / 300 / 600 dpi |
| Grayscale (8-bit) | ||
| Monochrome (1-bit) | ||
| Output methods(5) |
|
|
| Output file formats | PDF(Searchable / Password-protected / compressed / Marker Index processed), JPEG, TIFF(single / multi-page), page output in reverse order | |
| Authentication (5) |
|
|
| Network interface | 10BASE-T, 100BASE-TX, 1000 BASE-T | |
| Network protocols | TCP/IP(IPv4 / IPv6 (7) ), DNS, DHCP, SMTP, SMB, LDAP, NTP, FTP, HTTP, SNMP | |
| Scanner Central Admin Server | Windows® 2003, 2008, 2008 R2, 2012, 2012 R2, 2016 Server required | |
| Network Server Authentication | Windows® 2003, 2003 R2, 2008, 2008 R2, 2012, 2012 R2, 2016 Server or open LDAP | |
| Power requirements | AC 100 to 240 V ±10% | |
| Power consumption | Operating mode: 38 W or less Sleep mode: 2.0 W or less Auto Standby (off) mode: 1.0 W or less |
|
| Operating environment | Temperature: 5 to 35°C (41 to 95°F) Relative humidity: 20 to 80% (Non-condensing) |
|
| Dimensions:Width X Depth X Height (8) | 300 x 232 x 172 mm (11.8 x 9.1 x 6.8 in.) | |
| Weight | 6 kg or less (28.7 lb) | |
| Environmental compatibility | ENERGY STAR® / RoHS | |
| Display | LCD | 8.4 inch XGA (1,024 x 768 pixels) TFT Color monitor |
| Touch panel | Analog resistive touch panel | |
| Keyboard | Software keyboard | |
- Scan A8 size documents with a paper thickness of 127 g/㎡
- Scanning the document over 863mm in length is supported with output resolution 200dpi or below.
- Actual scanning speeds are affected by data transmission and software processing times.
- Maximum output resolution may vary upon scanning range. In addition, Carrier Sheet scanning supports scanning at resolutions of up to 300 dpi.
- Please check System Requirements for details about the server types supported by N7100.
- An authentication database is stored locally in the N7100. User information is registered into the database from the application User Editor. Only one authentication database can be configured in the scanner.
- IPv6 function will be available by applying updates which will be available for download from Aug, 2015 (free of charge).
*Points of Attention regarding usage of IPv6:
- N7100 has earned the IPv6 Ready Logo Phase-2 (CORE), approved by the IPv6 Ready Logo Program for testing conformance and interoperability among devices using IPv6.
- IPv6 connection requires network devices that support IPv6. Please confirm IPv6 connection among your network devices and N7100 in the network environement in order to assign an IPv6 address to N7100.
- Please use an IPv4 address of N7100 for connection with an FTP Proxy server, an NTP server, an SNMP server, or a Central Admin server. N7100 does not support the connections with those servers using IPv6 addresses.
- Excluding the ADF paper chute and stacker.
